Description

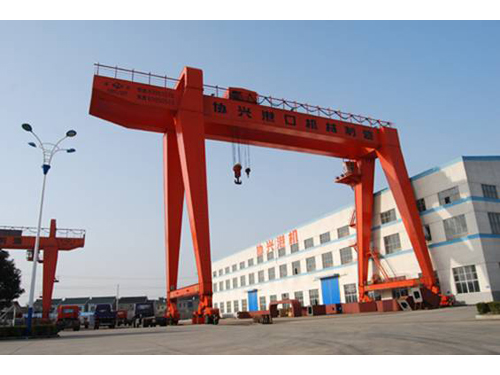

Overhead gantry crane is hoist equipment which designed for outdoor cargos materials handling applications. This overhead goliath crane is often used for loading and unloading cargos at ports or stack yards. This bridge crane looks like a girder supported by two A-frame legs. We have single girder and double girder types.
Advantages
1. As to longer work life and less maintenance, our overhead gantry crane has passed strict test.
2. Overhead goliath crane has reliable operation, reasonable price, high efficiency, optimized design and large hoist capacity.
3. Overhead gantry crane is easy, safe and comfortable for users.
Parameters of Overhead Goliath Crane
Name | Unit | Main hook | Secondary kook | |
Max. lifting capacity | Ton | 200 | 20 | |
Span | m | 42 | ||
Lift height | Above crane rail | m | 29 | |
Operating speed | Hoisting | m/min | 4.4 | 8.95 |
Small trolley | m/min | 25 | ||
Big trolley | rpm | 0-27.5 | ||
Rail gauge | m | 42 | ||
Width between crane legs | m | 16 | ||
Total travel distance | m | 300 | ||
Power supply | Type | Cable reel | ||
Voltage | 3P 380V 50Hz |
Notices
1. The payment mode of our overhead gantry crane is T/T or L/C, and the production and delivery cycle is 5-6 months.
2. To reduce wear, extend longevity, and keep efficient, please make sure the equipment always do the same amount of work, that's to say, you should not make the overhead goliath crane do small amount of work for a while, and then large amount for a while.
3. The maintenance of the overhead gantry cranes includes cleaning, tightening, adjustment, lubrication, corrosion prevention, safety inspection, etc. Lubrication and safety inspection are important among these steps. The overhead goliath crane needs daily and regular maintenance.
Established in 2001, Wuxi Xiexing Port Crane Machinery Co., Ltd is a professional manufacturer and supplier of port cranes. Our main products include fixed port crane, portal crane, gantry crane, container crane, bridge crane, and rubber tyred crane.
