Shipyard Gantry Crane

Description

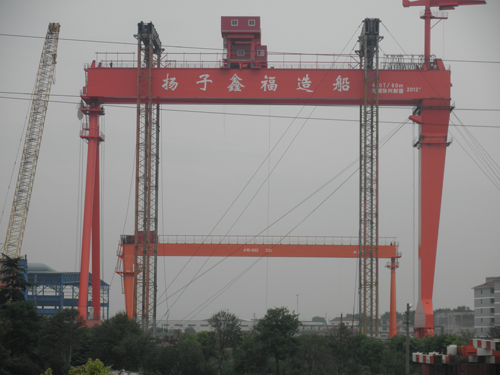

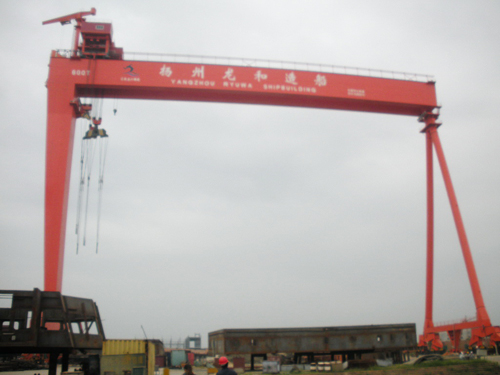

Shipyard gantry cranes are used for assembling ship body on the slipway and also for repairing ships. This goliath crane for shipbuilding is equipped with two lift trolley. One of them has two main hooks which travel on the rail upon the bridge, and another one has a main hook and a secondary hook which travel on the rail under the bridge. So the ship gantry crane can turn over and lift large ship body. This goliath crane has reliable operation, reasonable price, high efficiency, optimized design and light weight.

Parameters of Shipyard Gantry Crane

Name		Unit	Main hook	Secondary hook
Max. lifting capacity		Ton	300	32
Span		m	96
Lift height	Above crane rail	m	66
Operating speed	Hoisting	m/min	0.3-6
	Upper small trolley	m/min	2-30
	Under small trolley	m/min	2-30
	Big trolley	rpm	2-30
Rail gauge		m	95
Width between crane legs		m	28
Total travel distance		m	300
Power supply	Type		Cable reel
	Voltage		10kv, 50Hz

Notice
1. The payment mode of this goliath crane is T/T or L/C, and the production and delivery cycle is 5-6 months.
2. The maintenance of the shipyard gantry cranes includes cleaning, tightening, adjustment, lubrication, corrosion prevention, safety inspection, etc. Lubrication and safety inspection are important in these steps. This goliath crane needs daily and regular maintenance.
3. Shipyard gantry cranes should be used at the environmental temperature range of -25℃~40℃. The average temperature of 24 hours should not exceed 35℃.
